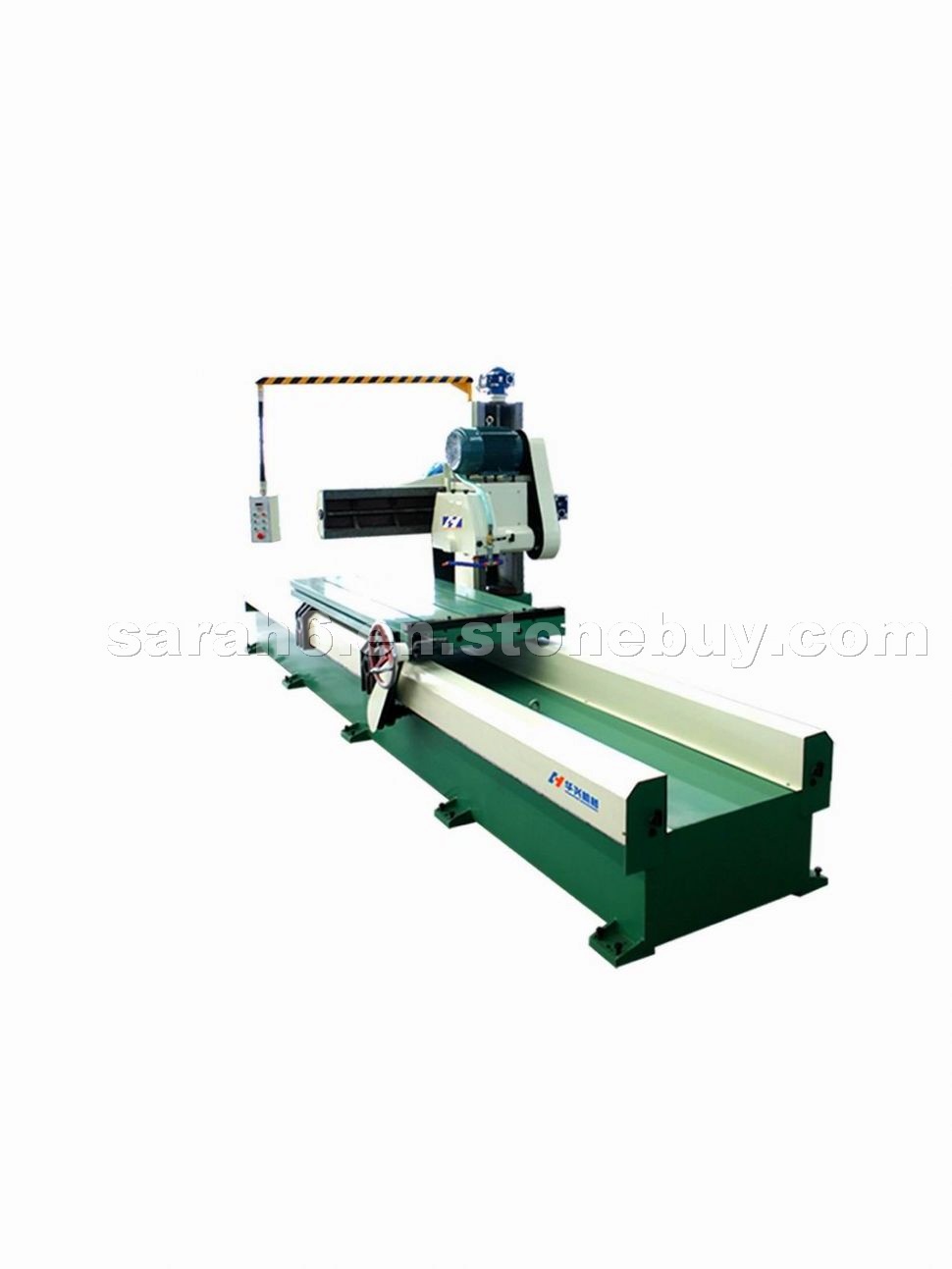

HQB40-60 Manual cutter

• Place of Origin:

   China

• Type:

  Sawing and Cutting Machinery

• Genre:

  Machinery & Equipment

• sCode:

  STPR1461876

• Place of Origin:

  China
• HQB40-60 Manual cutter
  HQB40-60 Manual cutter is mainly used for the cutting and angle inverted processing of granite, marble, terrazzo and porcelain, etc.
  1、Lengthen the crossbeam and make the cutting width increased to 1200mm.
  2、Elevator motor and cross motor are adopted in this machine.
  3、Widen the disc guard and increasing the power of main motor. It can be used for cutting no more than 160mm thickness of plates and slabs with 400~600mm diameters of disc.
  4、Different diameters of belt pulley are added, which can be changed to adapt to different rotary speeds of discs.
  5、This machine also has the function of marking and gaining after lengthening the main shaft.
  6、The main body and trolley is connected together for easy to move and install.
  7、It is easy to control and operate by using button station.

  Main Parameters:
  1. Diameter of discs Φ400/600mm
  2. Cross stroke of disc 1200mm
  3. Vertical stroke of disc 400/300mm
  4. Rotation angle of main shaft holder 0°~90°
  5. Area of trolley 2000*840mm
  6. Stroke of trolley 3000mm
  7. Total capacity 12.25kw
  8. Main motor 11kw
  9. Elevator reducer 0.75kw
  10. Cross reducer 0.75kw
  11. Pump motor 0.75kw
  12. Overall dimension 7000*2600*2200mm
  13. Weight 2700kgs
