stone processing machine

• Place of Origin:

   China

• Type:

  Others

• Genre:

  Machinery & Equipment

• sCode:

  STPR1465353

• Place of Origin:

  China

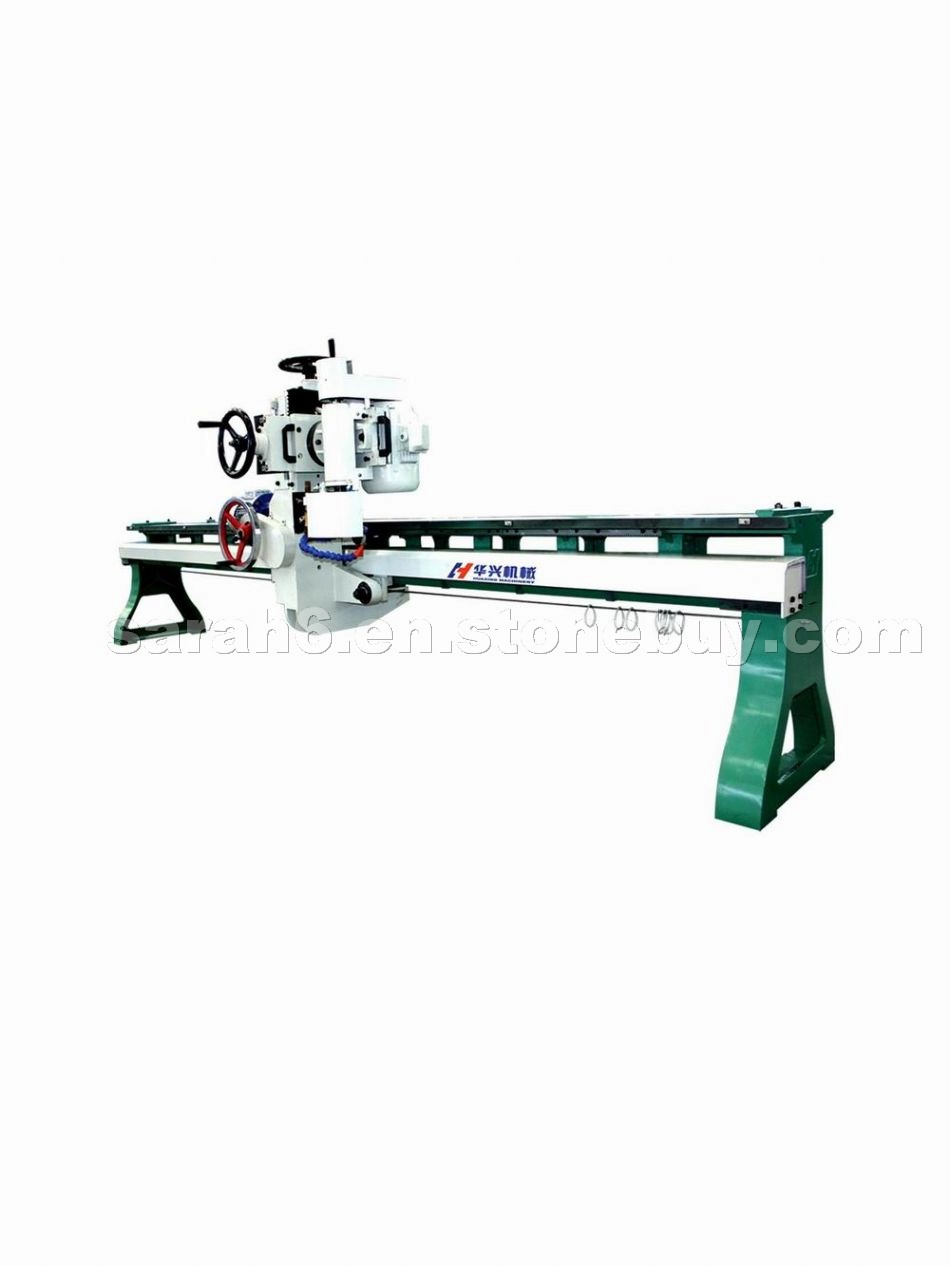

• YHXM Series Irregular Line Milling Polisher
  YHXM Series Irregular Line Milling Polisher is mainly used for grinding straight or curve edge of granite and marble, and other non-metallic materials. It also can be used for cutting and edge cutting of plates.
  1、This machine is well designed and working stably, which raise the processing accuracy.
  2、The rails of this machine are all-seal oil sinking type one, it guarantee a long usage life and high guidance precision.
  3、This machine adopts two-speed motor, which raises the polishing efficiency.
  4、The movement from left to right adopts two types of two-speed and infinite speed variation.

  Main Parameters:
  Model350Ⅰ350Ⅱ350Ⅲ350Ⅳ
  Main motor (kw)4.5/5.54.5/5.53.3/43.3/4
  Walking motor (kw)0.55/0.750.550.55/0.750.55
  Walking speed (m/min)2/40.2~42/40.2~4
  Effective processing
  stroke (mm)3500350035003500
  Length of body (mm)4200420042004200
  Maximum vertical stroke150150150150
  Adjustable stroke from
  front to back (mm)120120120120
  Maximum processing
  width (mm)≤150≤150≤150≤150
  Deflective angle of
  polishing head (°)±8±8±8±8
  Rotary angle of headArbitraryArbitraryArbitraryArbitrary
  Maximum diameter of
  disc (mm)200200200200
  Rotary speed of
  polishing head (r/min)1500/30001800/36001500/30001800/3600
  Overall dimension (m)4.3*2*1.64.3*2*1.64.3*2*1.64.3*2*1.6
  Weight (kgs)1050105011001100
